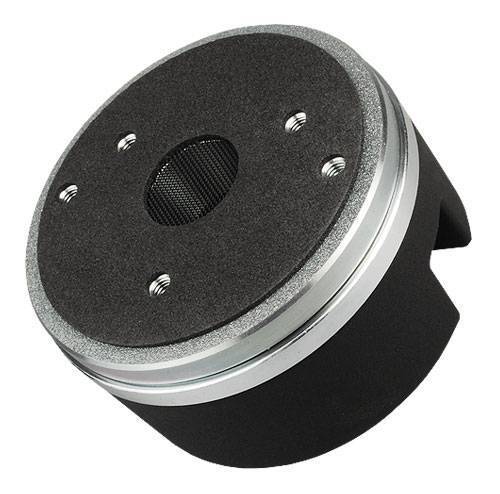

Driver Faital Neodymium 1" 120W 108dB VC1.73"
Driver Faital Neodymium 1" 120W 108dB VC1.73"
Technical Parameters
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.9 Ohm |
| AES Power Handling (1) | 60 W |
| Maximum Power Handling (2) | 120 W |
| Minimum Crossover Frequency (3) | 1.3 kHz |
| Sensitivity (1W/1m) (4) | 108 dB |
| Frequency Range | 1÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Titanium |
| Diaphragm Shape | Dome |
| Winding Depth | 1.9 mm (0.07 in) |
| Magnetic Gap Depth | 2.65 mm (0.10 in) |
| Flux Density | 1.9 T |
| Magnet | Neodymium Ring |
| Re | 5.8 Ohm |
| Phase Plug Design | Radial |
| Exit Angle (5) | 21° Conical |
| NET Air Volume filled by HF Driver | 0.35 dm^3 (0.012 ft^3) |
